kaohom-網路總機kpbx

6-1

新商品

  • 錄音系統
  • 行動辦公室
  • 語音信箱 (支援轉寄留言檔案)
  • 支援行動分機APP
  • 節費路由

更多資訊

新增至待購列表

商品介紹

kaohom-網路總機kpbx 介紹

KAOHOM業界公認最專業的通訊與網路

系統整合顧問專家

兩岸企業建置網路總機  首選領導品牌

KPBX 雲端總機系統可融合各大傳統總機-免汰換直接升級

產品360度示意影片


功能選擇 :

錄音系統 / 行動辦公室 / 語音信箱 (支援轉寄留言檔案)

可錄製多家招呼語/ 單點-群組雙向廣播功能(需搭配kphone-K8話機 )

/ 支援行動分機APP / 外轉外 / 節費路由 / 全球多點

 串聯八方語音會議系統 / 支援200 組共用速撥簡碼

 未來支援視訊話機與視訊通話



kaohom-網路總機kpbx 規格

HARDWARE FEATURES



Ethernet Interface

1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)

Signal Interface

4 FXO ports and 1 FXS port on base unit
4 Configurable FXO or FXS port

External Power Supply

DC +12V Output

LED Status

Power
1~8 FXO/FXS Status

Console

1 Console Port

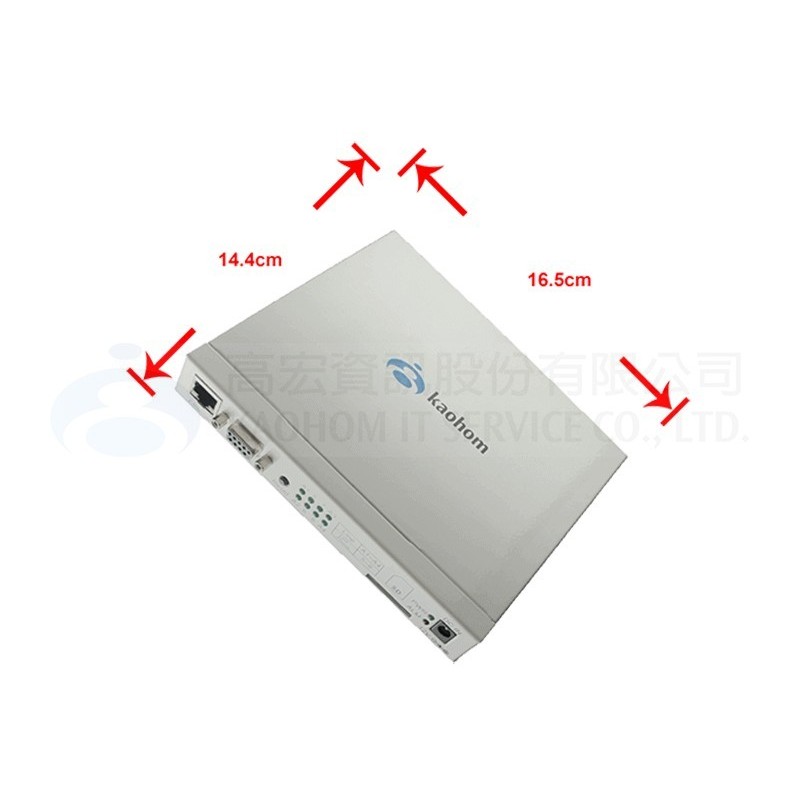

Dimensions (L x W x H)

165 x 143 x 25 mm



IP PBX FEATURES



Protocal

SIP Registrar Server
SIP Outbound Proxy Server

Call Features

Auto-attendant, Attended Transfer, Auto Routing Selection
Blind Transfers
Call Detail Records, Call Emergency, Call Filter, Call Forwarding, Call Hold and Retrieve, Call Parking, Call Pickup, Call Recording, Call Routing, Call Transfer, Call Waiting, Caller ID, Conference
Dial Plan, DID (Direct Inward Dialing),
DISA (Direct Inward System Access), DND (Do Not Disturb)
Firewall, Follow Me Mode
Hunting Group (Ring All, Ring in Order, Ring on Busy, Random)
Intercom, IVR (Interactive Voice Response)
LCR (Least Cost Routing)
Music on Hold, Music on Transfer
Night Service - Auto-attendant, Call Forwarding, Hunt group
Paging
Ring Group
Voicemail - Voicemail to Email Forward, Record Personal Greeting

Codec / DSP

G.711 A-law, G.711 μ-law, G.711 Fax, G.723, G.729 A, G.729 B, GSM, H.263, H.264
Comfort Noise Generation
DTMF Detection and Generation
DTMF Mode: Inband, Out-of-Band (RFC2833), SIP-INFO
Line Echo Cancellation
Silence Suppression
Voice Activity Detection

Network Protocal

Static IP, DHCP Client, DHCP Server, PPPoE, Dynamic DNS, Firewall, VPN

Web Management

Configuration Backup/Restore
Firmware Upgrade through Web
Live Status Monitoring - Active Channels and System Status
IVR Control Commands
Password Authentication, Personal Configuration

System Capacity

Up to 50 registered users
Up to 25 concurrent calls



OTHERS



Certification

CE, FCC, RoHS

Package Contents

KPBX
Power Adapter
Call Feature Card
Resource CD (Datasheet, Installation Guide)

Environment

Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing



  • Advanced Voice Functions: Auto attendant, blind transfer, conferencing, call forward, call transfer, call recording, IVR, ring group, and voicemail to email forwarding features are all included
  • Multi-Purpose Usage: Up to 50 users can be registered to KPBX, a unified communication system, and users can choose to route calls through the traditional PSTN line or the cost-effective ITSP VoIP line
  • VPN and Firewall: Protection, safety, and security are enhanced within the KPBX communication system
  • Mobilized Extensions: Your extension can easily be set on "Follow Me" mode or on "Call Forward" setting to direct calls to your desired extension anywhere anytime when phone status is 'busy' or 'no answer'
  • Growth Opportunities: Conveniently add cost-effective Ethernet switches and compatible IP phones when your business expands in number and/or size
  • Free Internal Worldwide Office Calls: Tie your offices into one single network
  • Lower Telephony Expenses: Save costs using low Internet Telephone calling rates
  • Voice IP PBX Features
  • Built-in SIP proxy server
  • Perfect compatibility with IP phones, soft
  • phones, ATA, voice gateway, and video
  • phones
  • Analog Interface with FXO/FXS ports
  • Voice Codec: ITU G.711, G.726, G.729,
  • G.723.1, and GSM
  • Echo Canceller Support
  • Video Codec Pass Through: H.263,
  • H.264, MPEG4
  • Advanced Call Features: Call Transfer,
  • Forward, Park, Pick-Up, Hunting, Follow
  • Me, Voicemail, Conference Room,
  • Paging/Intercom, IVR, Auto Attendant
  • Management
  • Support Remote Office connections and
  • expansions (Inter PBX)
  • Configurable Dial Plan
  • Network Features
  • PPPoE, Static IP, DHCP Client
  • DHCP Server
  • Dynamic DNS (DDNS)
  • WiFi 802.11 b/g
  • Management
  • Web based management
  • Configuration backup/Restore
  • Firmware upgrade via web
  • Password Authentication
  • Live status monitoring
  • VPN Function
  • Support PPTP, L2TP
  • Support IPSec
  • Support SSL
  • Fixed Mobile Convergence
  • 3G/3.5G cellular broadband connection
  • Support HSDPA / WCDMA / EDGE /
  • EVDO
  • Cellular Gateway
