> >>>SonicWall TZ300
SonicWall TZ300 查看大圖

SonicWall TZ300

TZ300

新商品

The SonicWall TZ300 series offers an all-in-one solution that protects networks from attack. Unlike consumer grade products, the
SonicWall TZ300 series firewall combines effective intrusion prevention, anti-malware and content/URL filtering with optional
802.11ac integrated wireless and broadest secure mobile platforms support for laptops, smartphones and tablets.

此為客製化商品，若有需求可填寫表單或來電詢問

更多資訊

新增至待購列表

商品規格

Interface 5x1GbE, 1 USB, 1 Console
品牌 Dell
處理器 2 x 800 MHz
作業系統 SonicOS
快取記憶體 64 MB
連接埠數量 5 port
傳輸速率 Gigabit
防火牆吞吐量 750Mbps
防火牆連線數 50,000/50,000
VLAN 25
標準記憶體 1GB

商品介紹

TZ Series:

Exceptional security and stellar performance at a disruptively low TCO

The SonicWALL TZ series of next generation firewalls (NGFW) is ideally suited for any organization that requires enterprise-grade network protection.

SonicWALL TZ series firewalls provide broad protection with advanced security services consisting of onbox and cloud-based anti-malware, anti-spyware, application control, intrusion prevention system (IPS), and URL filtering. To counter the trend of encrypted attacks, the SonicWALL TZ series has the processing power to inspect encrypted SSL connections against the latest threats.

Backed by the SonicWALL Global Response Intelligent Defense (GRID) network, the SonicWALL TZ series delivers continuous updates to maintain a strong network defense against cybercriminals. The SonicWALL TZ series is able to scan every byte of every packet on all ports and protocols with almost zero latency and no file size limitations.

The SonicWALL TZ series features Gigabit Ethernet ports, optional integrated 802.11ac wireless*, IPSec and SSL VPN, failover through integrated 3G/4G support, load balancing and network segmentation. The SonicWALL TZ series UTM firewalls also provide fast, secure mobile access over Apple iOS, Google Android, Amazon Kindle, Windows, MacOS and Linux platforms.

The SonicWALL Global Management System (GMS) enables centralized deployment and management of SonicWALL TZ series firewalls from a single system.

Managed security for distributed environments

Schools, retail shops, remote sites, branch offices and distributed enterprises need a solution that integrates with their corporate firewall. SonicWALL TZ series firewalls share the same code base—and same protection—as our flagship SuperMassive next-generation firewalls. This simplifies remote site management, as every administrator sees the same user interface (UI). GMS enables network administrators to configure, monitor and manage remote SonicWALL firewalls through a single pane of glass. By adding highspeed, secure wireless, the SonicWALL TZ series extends the protection perimeter to include customers and guests frequenting the retail site or remote office.

Benefits:

  • Enterprise grade network protection
  • Deep packet inspection of all traffic without restrictions on file size or protocol
  • Secure 802.11ac wireless connectivity using integrated wireless controller or via external SonicWALL SonicPoint wireless access points
  • SSL VPN mobile access for Apple iOS, Google Android, Amazon Kindle, Windows, Mac OS and Linux devices
  • Over 100 additional ports can be securely managed by the TZ console when deployed in combination with Dell X-Series switches

SonicWall TZ300 詳細規格:

Performance Overview
SonicOS Version SonicOS
Security Processor 2 x 800 MHz

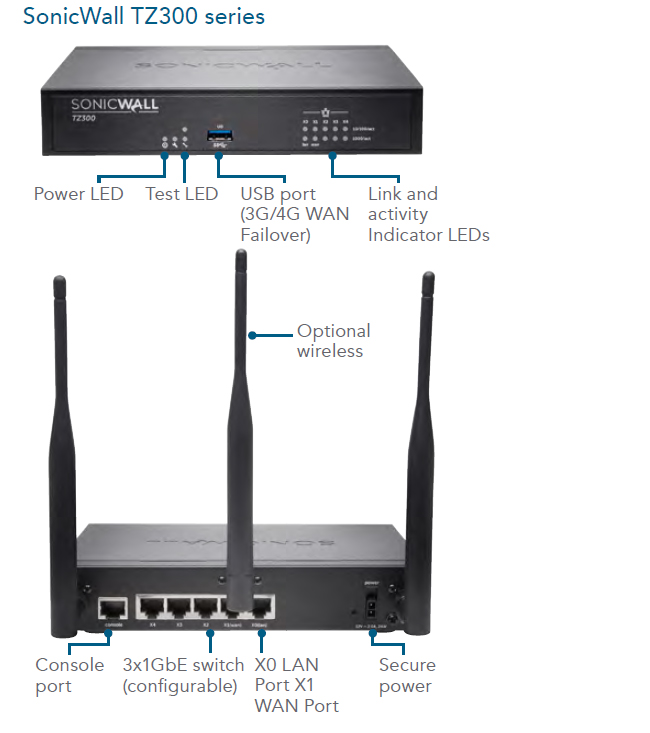

Interfaces 5x1GbE, 1 USB, 1 Console
Memory (RAM) 1 GB
Memory (flash) 64 MB
Expansion USB
Single Sign-On (SSO) Users 500
VLAN Interfaces 25
SonicPoints supported (maximum) 8
Dell X-Series switch models supported X1008/P, X1018/P, X1026/P, X1052/P, X4012
Firewall/VPN performance
Firewall Inspection Throughput1 750 Mbps
Full DPI Throughput2 100 Mbps
Application Inspection Throughput2 300 Mbps
IPS Throughput2 300 Mbps
Anti-malware Throughput2 100 Mbps
IMIX Throughput 200 Mbps
SSL Inspection & Decryption (DPI SSL) Throughput2 45 Mbps
IPSec VPN Throughput3 300 Mbps
Connections per second 5,000
Maximum connections (SPI) 50,000
Maximum connections (DPI) 50,000
Maximum connections (DPI SSL) 500
VPN
Site-to-Site VPN Tunnels 10
IPSec VPN Clients (maximum) 1 (10)
SSL VPN Licenses (maximum) 1 (50)
Virtual Assist Bundled (Maximum) 1 (30-day trial)
Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
Key Exchange Diffie Hellman Groups 1, 2, 5, 14
Route-based VPN RIP, OSPF
Certificate Support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWALL-to-SonicWALL VPN, SCEP
VPN Features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported Microsoft Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Apple iOS, Mac OS X, Google Android, Kindle Fire, Windows 8.1 (Embedded)
Security Services
Deep Packet Inspection Services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, ActiveX, Java Applet, and cookie blocking bandwidth management on filtering categories, allow/forbid lists
Enforced Client Anti-Virus and Anti-Spyware McAfee and Kaspersky
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control Yes
Capture Advanced Threat Protection Yes
Networking
IP Address Assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT Modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing Protocols4 BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
Local User Database 150
VoIP Full H.323v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications Pending Common Criteria NDPP
Common Access Card (CAC) Supported
High availability Active/standby
Hardware
Form Factor Desktop
Power Supply (W) 24W external
Maximum Power Consumption (W) 6.9 / 12.0
Input Power 100 to 240 VAC, 50-60 Hz, 1 A
Total Heat Dissipation 23.5 / 40.9 BTU
Dimensions (in) 1.3x5.3x7.5
Dimensions (cm) 3.5x13.4x19
Weight 0.73 kg / 1.61 lbs
0.84 kg / 1.85 lbs
WEEE Weight 1.15 kg / 2.53 lbs
1.26 kg / 2.78 lbs
Shipping Weight 1.37 kg / 3.02 lbs
1.48 kg / 3.26 lbs
MTBF (Years) 56.1
Environment 40-105° F, 0-40° C
Humidity 5-95% non-condensing
Regulatory
Regulatory Model (wired) APL28-0B4
Major Regulatory Compliance (wired) FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, KCC/MSIP
Regulatory Model (wireless) APL28-0B5
Major Regulatory Compliance (wired) FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH
Integrated Wireless
Standards 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS
Frequency bands5 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz
Operating Channels 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64; 802.11ac: US and Canada 36-48/149- 165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
Transmit output power Based on the regulatory domain specified by the system administrator
Transmit power control Supported
Data rates supported 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel; 802.11b: 1,2,5.5,11 Mbps per channel; 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel; 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel
Modulation technology spectrum 802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/ Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM)

1 Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated services.
2 Full DPI/GatewayAV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs.
3 VPN throughput measured using UDP traffic at 1280 byte packet size adhering to RFC 2544. All specifications, features and availability are subject to change.
4 BGP is available only on SonicWall TZ400, TZ500 and TZ600.
5 All TZ integrated wireless models can support either 2.4GHz or 5GHz band. For dual-band support, please use SonicWall's wireless access points products (SonicPoints)
* Future use.
