> >>>WS-C2960+24LC-S Cisco Catalyst Switch

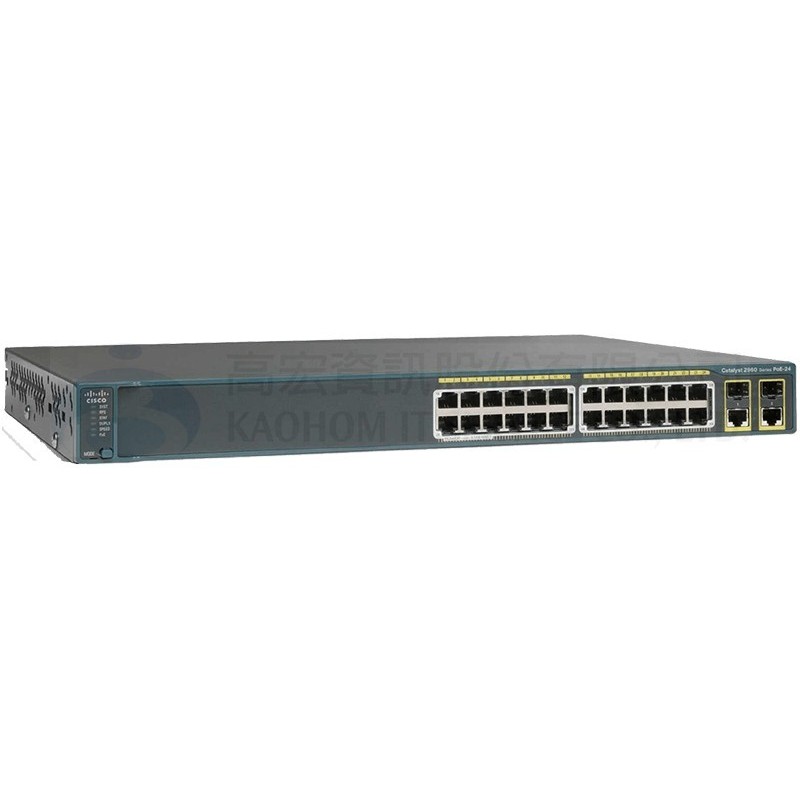

WS-C2960+24LC-S Cisco Catalyst 2960-Plus 24LC-S Switch 查看大圖

WS-C2960+24LC-S Cisco Catalyst Switch

13-2-2-2

新商品

  • 24 Ethernet 10/100 Ports
  • 8 of the Ethernet Ports are PoE
  • 2 Dual-Purpose Uplink Ports
  • Cisco EnergyWise Technology
  • Intelligent PoE Management
  • Cisco Catalyst Smart Operations
  • Cisco TrustSec
  • Lan Lite Software Included
  • Limited Lifetime Hardware Warranty

更多資訊

by order

加購項目

必選。請詳細閱讀各項敘述。

  • 設備維護合約 / 年: NT$15000

    包含
    1. IP 路由規劃顧問
    2.一年遠端技術支援
    NT$ 15,000
    設備維護合約 / 年: NT$15000

    NT$ 15,000

  • 安裝設定(含顧問諮詢) / 時: NT$8000

    服務包含
    1. 第一次到府安裝設定
    2. 顧問諮詢 /時

    下單時加購此服務可立即現金折抵5000元。
    PS: 訂單成立時未加購此服務，等於當筆訂單放棄此優惠。
    售後若需要安裝設定服務，需付原價8000元。
    NT$ 8,000
    安裝設定(含顧問諮詢) / 時: NT$8000

    NT$ 8,000

  • 本次採購不需安裝設定服務

    本次採購不需安裝設定服務

NT$ 26,280 未稅

新增至待購列表

商品規格

品牌 Cisco
連接埠數量 24 port
管理階級 layer 2
傳輸速率 10Mbps / 100Mbps
PoE供電 有PoE
光籤模組 (SFP) 2 PORT SFP

商品介紹

Cisco Catalyst 2960-Plus 24LC-S Switch 介紹

  • The Cisco Catalyst 2960 WS-C2960-24LC-S is a 24x10/100 (8-port PoE) rack mountable Ethernet switch that supports Layer 2 security for entry-level offices and wiring closet networks. This Cisco Ethernet switch, with 2 dual-purpose uplinks offers a full-duplex, gigabit-speed trunk for this switch stack. With Auto-Negotiation feature, this 24-port network switch selects data transfer speed at full or half-duplex mode, thereby running the network at optimum speed. The Cisco Catalyst 2960 WS-C2960-24LC-S 24-port network switch offers PoE (Power over Ethernet), which supports IP phone and wireless LAN without additional cabling. This Cisco Ethernet switch uses QoS traffic prioritization technology that classifies and prioritizes network traffic to avoid congestion.
  • Catalyst 2960 Plus 24 10/100 (8 PoE) + 2 T/SFP LAN Lite
  • Cisco EnergyWise Technology
  • Intelligent Power over Ethernet Management
  • Cisco Catalyst Smart Operations
  • Cisco TrustSec

Cisco Catalyst 2960-Plus 24LC-S Switch 規格

Standards IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP without MED)
IEEE 802.3ad
IEEE 802.3ah (100BASE-X single- and multimode fiberonly)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and1000BASE-T ports
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
100BASE-FX (SFP)
1000BASE-SX (SFP)
1000BASE-LX/LH (SFP)
Remote Monitoring (RMON) I and II standards
SNMPv1, v2c, and v3
Protocols TCP/IP
Ports 24 x Ethernet 10/100 (only 8 of these ports are PoE)
2 x dual-purpose ports (10/100/1000 or SFP)
Bandwidth Forwarding: 16Gb/s
Flash Memory 32MB
Memory (DDR SDRAM) 64MB
Speed 10/100 Mbps
10/100/1000 Mbps (dual-purpose ports only)
MAC Address Table Size 8000
Frame Rate 9016 bytes
Switching Method Managed
VLANs Up to 64
Up to 4000 IDs
Output Data Size Maximum Transmission Unit (MTU): Up to 9198 bytes
Maximum Forwarding Rate 6.5 mpps
Advanced Features Unicast MAC Addresses
Default: 8000
QOS: 8000
Dual: 8000

IPv4 IGMP Groups
Default: 256
QoS: 256
Dual: 256

IPv4 MAC QoS Acccess Control Entries (ACEs)
Default: 128
QoS: 384
Dual: 0

IPv4 Mac Security ACEs
Default: 384
QoS: 128
Dual: 256
Management BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MI
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-POWER-ETHERNET-EXT-MIB
CISCO-PRODUCTS-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
Cisco-UDLDP-MIB
CISCO-TC-MIB
CICSO-TCP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-IFTABLE-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
Pressure Levels Typical Sound: 48dB
MTBF 311,007 hours
General
Environmental Requirements Operating Temperature (5000'/1500m): 23°F to 113°F / -5°C to 45°C
Operating Temperature (10,000'/3000m): 23°F to 104°F / -5°C to 40°C
Short-term Exception at Sea Level: 23°F to 31°F / -5°C to 55°C
Short-term Exception (5000'/1500m): 23°F to 122°F / -5°C to 50°C
Short-term Exception (10,000'/3000m): 23°F to 113°F / -5°C to 45°C

Operating Altitude: 10,000' / 3,000m
Storage Altitude: Up TO 13,000' / 4,000m

Operating Relative Humidity: 10% to 95% (noncondensing)
Storage Relative Humidity: 10% to 95% (noncondensing)
Power Consumption 100% Throughput: 79W
5% Throughput: 78W
Power Requirements Voltage: 100-240 VAC
Frequency: 50-60Hz
Current: 1.3-0.8 A
Power Rating 0.175 kVA
Safety Compliance UL 60950-1, Second Edition
CAN/CSA 22.2 No. 60950-1, Second Edition
TUV/GS to EN 60950-1, Second Edition
CB to IEC 60950-1 Second Edition with all country deviations
CE Marking
NOM (through partners and distributors)
Emission Standard FCC Part 15 Class A
EN 55022 Class A (CISPR22)
EN 55024 (CISPR24)
AS/NZS CISPR22 Class A
CE
CNS13438 Class A
MIC
GOST
China EMC Certifications
RoHS Compliant Yes
Dimensions 1.73 x 17.7 x 13.0" / 4.4 x 45.0 x 33.0cm
Weight 4.5 lb / 2.0 kg
