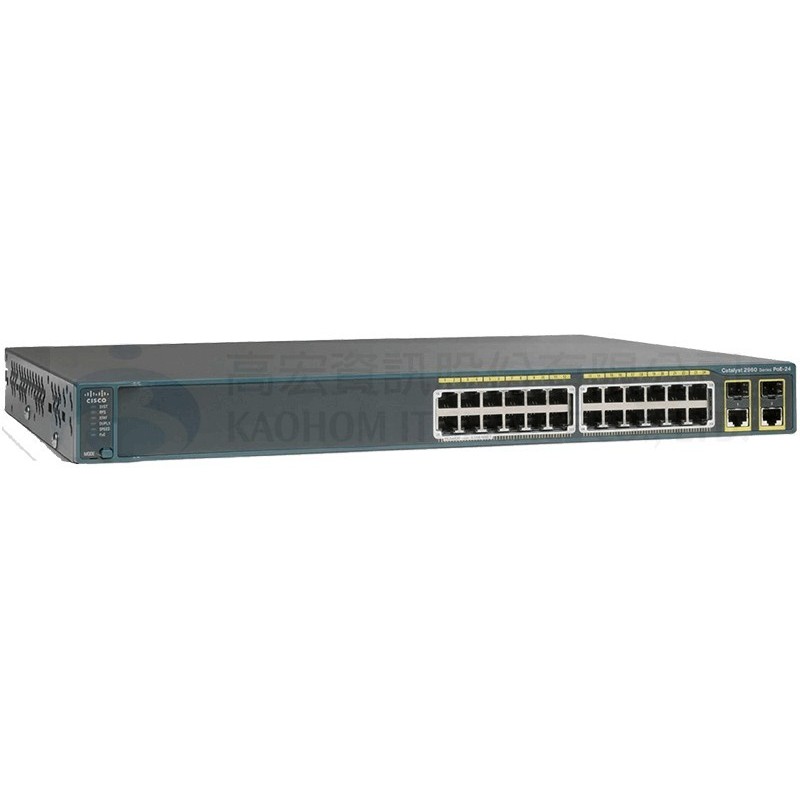

WS-C2960+24PC-S Cisco Catalyst Switch

編號： 13-2-2-4

狀態：新商品

Catalyst 2960 Plus 24 10/100 PoE + 2 T/SFP LAN Lite
24 Ethernet 10/100 Ports
All Ethernet Ports are PoE
2 Dual-Purpose Uplink Ports
Cisco EnergyWise Technology
Intelligent PoE Management
Cisco Catalyst Smart Operations
Cisco TrustSec
Lan Lite Software Included
Limited Lifetime Hardware Warranty

更多資訊

by order

撰寫評論

加購項目

網路設備選配

必選。請詳細閱讀各項敘述。

設備維護合約 / 年: NT$15000

包含
1. IP 路由規劃顧問
2.一年遠端技術支援

NT$ 15,000

設備維護合約 / 年: NT$15000

NT$ 15,000
安裝設定(含顧問諮詢) / 時: NT$8000

服務包含
1. 第一次到府安裝設定
2. 顧問諮詢 /時

下單時加購此服務可立即現金折抵5000元。
PS: 訂單成立時未加購此服務，等於當筆訂單放棄此優惠。
售後若需要安裝設定服務，需付原價8000元。

NT$ 8,000

安裝設定(含顧問諮詢) / 時: NT$8000

NT$ 8,000
本次採購不需安裝設定服務

本次採購不需安裝設定服務

發送給朋友
發送給朋友
WS-C2960+24PC-S Cisco Catalyst Switch

Catalyst 2960 Plus 24 10/100 PoE + 2 T/SFP LAN Lite

24 Ethernet 10/100 Ports

All Ethernet Ports are PoE

2 Dual-Purpose Uplink Ports

Cisco EnergyWise Technology

Intelligent PoE Management

Cisco Catalyst Smart Operations

Cisco TrustSec

Lan Lite Software Included

Limited Lifetime Hardware Warranty
收件人 :

您朋友的名稱 ^* :

您朋友的電郵地址 ^* :

^* 必填欄位

或取消
在 Facebook 分享!
從我的收藏夾刪除此商品。
添加此商品到我的收藏夾。
列印

商品規格

品牌	Cisco
連接埠數量	24 port
管理階級	layer 2
傳輸速率	10Mbps / 100Mbps
PoE供電	有PoE
光籤模組 (SFP)	2 PORT SFP

商品介紹

Cisco Catalyst 2960-Plus 24PC-S Switch 介紹

The Catalyst 2960-24PC-S 24-Port 10/100 Ethernet Switch from Cisco is an Ethernet switch with 24 ports for 10/100 Ethernet as well as 2 dual-purpose uplink ports. It comes bundled with LAN Lite software and Power over Ethernet (PoE) capabilities. A limited lifetime hardware warranty helps protect your business from malfunctioning equipment. Your business will be up and running with next business day delivery of replacement parts and 90 days of Cisco Technical Assistance (TAC) support.

Cisco Catalyst 2960-Plus 24PC-S Switch 規格

Standards	IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP without MED) IEEE 802.3ad IEEE 802.3ah (100BASE-X single- and multimode fiberonly) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and1000BASE-T ports IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification 100BASE-FX (SFP) 1000BASE-SX (SFP) 1000BASE-LX/LH (SFP) Remote Monitoring (RMON) I and II standards SNMPv1, v2c, and v3
Protocols	TCP/IP
Ports	24 x Ethernet 10/100 (all 24 of these ports are PoE) 2 x dual-purpose ports (10/100/1000 or SFP)
Bandwidth	Forwarding: 16Gb/s
Flash Memory	32MB
Memory (DDR SDRAM)	64MB
Speed	10/100 Mbps 10/100/1000 Mbps (dual-purpose ports only)
MAC Address Table Size	8000
Frame Rate	9016 bytes
Switching Method	Managed
VLANs	Up to 64 Up to 4000 IDs
Output Data Size	Maximum Transmission Unit (MTU): Up to 9198 bytes
Maximum Forwarding Rate	6.5 mpps
Advanced Features	Unicast MAC Addresses Default: 8000 QOS: 8000 Dual: 8000 IPv4 IGMP Groups Default: 256 QoS: 256 Dual: 256 IPv4 MAC QoS Acccess Control Entries (ACEs) Default: 128 QoS: 384 Dual: 0 IPv4 Mac Security ACEs Default: 384 QoS: 128 Dual: 256
Management	BRIDGE-MIB CISCO-CABLE-DIAG-MIB CISCO-CDP-MIB CISCO-CLUSTER-MI CISCO-CONFIG-COPY-MIB CISCO-CONFIG-MAN-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-ENVMON-MIB CISCO-ERR-DISABLE-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRODUCTS-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-SMI-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB Cisco-UDLDP-MIB CISCO-TC-MIB CICSO-TCP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-IFTABLE-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IEEE8023-LAG-MIB IF-MIB INET-ADDRESS-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB RFC1213-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB
Pressure Levels	Typical Sound: 48dB
MTBF	242,818 hours

General
Environmental Requirements	Operating Temperature (5000'/1500m): 23°F to 113°F / -5°C to 45°C Operating Temperature (10,000'/3000m): 23°F to 104°F / -5°C to 40°C Short-term Exception at Sea Level: 23°F to 31°F / -5°C to 55°C Short-term Exception (5000'/1500m): 23°F to 122°F / -5°C to 50°C Short-term Exception (10,000'/3000m): 23°F to 113°F / -5°C to 45°C Operating Altitude: 10,000' / 3,000m Storage Altitude: Up TO 13,000' / 4,000m Operating Relative Humidity: 10% to 95% (noncondensing) Storage Relative Humidity: 10% to 95% (noncondensing)
Power Consumption	100% Throughput: 27W 5% Throughput: 24W
Power Requirements	Voltage: 100-240 VAC Frequency: 50-60Hz Current: 1.3-0.8 A
Power Rating	0.47 kVA
Safety Compliance	UL 60950-1, Second Edition CAN/CSA 22.2 No. 60950-1, Second Edition TUV/GS to EN 60950-1, Second Edition CB to IEC 60950-1 Second Edition with all country deviations CE Marking NOM (through partners and distributors)
Emission Standard	FCC Part 15 Class A EN 55022 Class A (CISPR22) EN 55024 (CISPR24) AS/NZS CISPR22 Class A CE CNS13438 Class A MIC GOST China EMC Certifications
RoHS Compliant	Yes
Dimensions	1.73 x 17.7 x 13.0" / 4.4 x 45.0 x 33.0cm
Weight	5.4 lb / 2.5 kg
